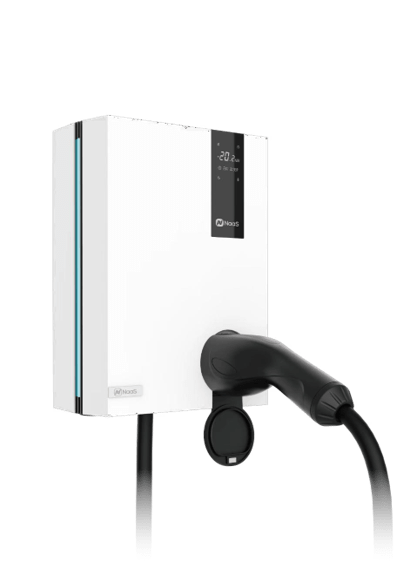

Sunpower AC Wallbox
AC charger (European standard) 11 kW
Charging robot
Communication charger 7 kW

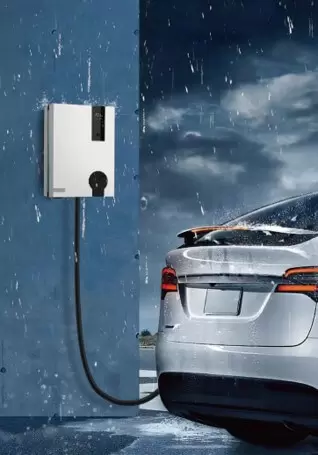

Adopting high-strength PC+ABS Engineering plastic shell integrated molding. Supports wall mounted and column mounted installation, meeting diverse application scenarios
The equipment has multiple protections such as anti leakage, input overvoltage and undervoltage, output overcurrent, anti surge, output short circuit, over temperature, emergency stop, etc
Support cloud based backend management to provide customers with more convenient, secure, and caring charging operation management solutions
Sunpower AC Wallbox
Sunpower AC Wallbox
Power：7kW / 11kW / 22kW
Sunpower HK service
Local technical support and maintainability
Always stay online for remote diagnosis and free of charge OTA update

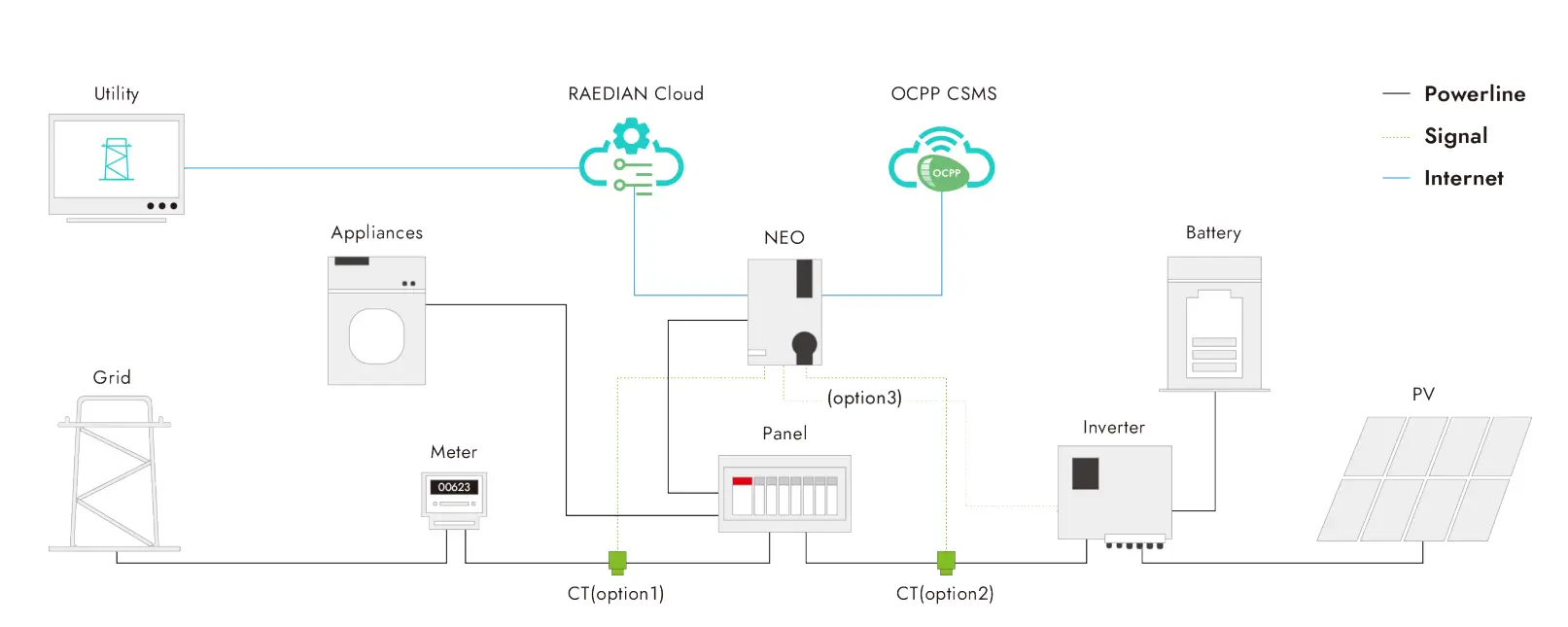

load balancing
Design of maximum adaptive capability for smart home solutions
Multiple load balancing modes:
Home Balance/ Solar/ Solar Plus/ ECO
Features and functions

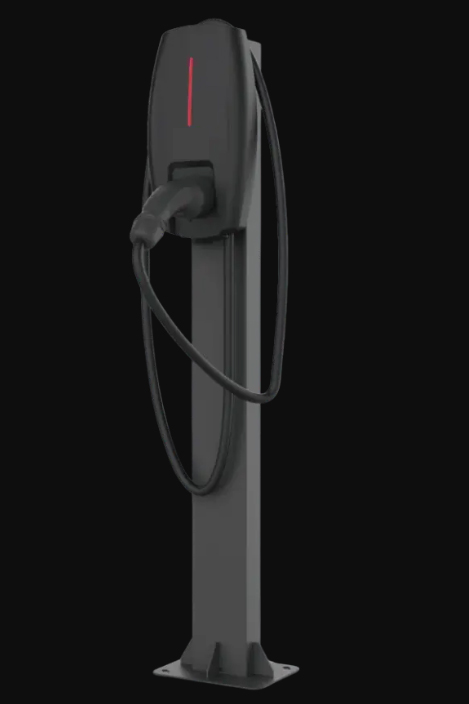

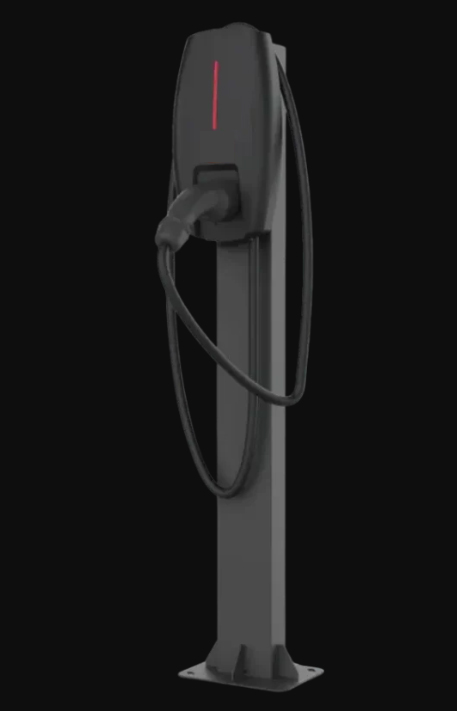

Installation options:
Wall mounted or pedestal with wiring backplate

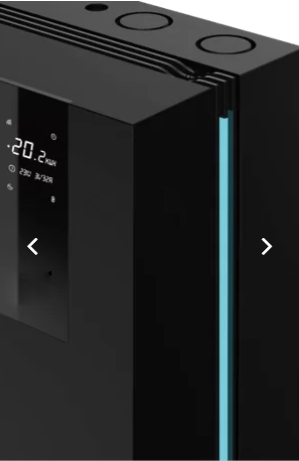

Display:
OLED Display with status indicator and metering information
Interface:
LED strips, Charging Tone
Load management:

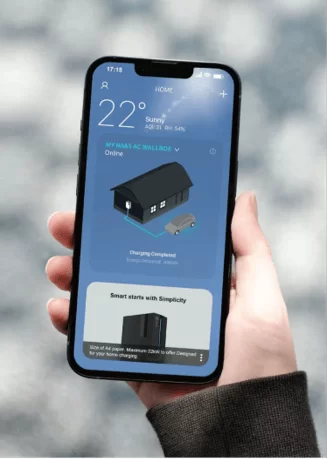

Via App, CT Clamps (optional）, RS-485
Charging mode:
AC Mode 3
charge connector
IEC 62196 Type 2 cable, Type 2 socket, Type 2 socket with shutter
AC output:
Single phase up to 7.4kW. Three phase with downgrade compatibility up to 22kW
Metallic Silver
silver metal
Space Black
dark
Passion Red
Passionate Red
Lunar White
Crescent White
Sunpower Charging pile product matrix

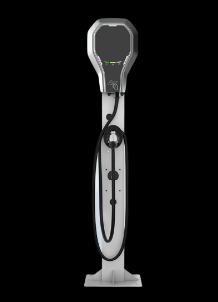

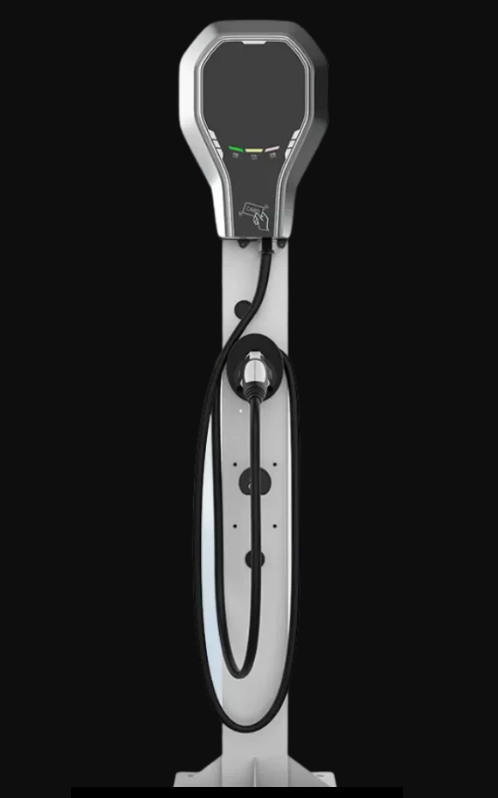

AC charger (European standard) 11 kW
Power allocation instructions
Power Supply / Power supply: 3 P+N+PE
Rated Voltage / Rated voltage: 400 VAC
Rated Current / Rated current: 16 A
Frequency / Frequency: 50/60 Hz
Output Voltage / Output voltage: 400 VAC
Maximum Current / Maximum current: 16 A
Rated Power / Rated power: 11 kW
Communication charger 7 kW
Power allocation instructions
Rated Voltage / Rated voltage: 230 VAC
Rated Current / Rated current: 32 A
Frequency / Frequency: 50/60 Hz
Output Voltage / Output voltage: 230 VAC
Maximum Current / Maximum current: 32 A
Power / Rated power: 7 kW

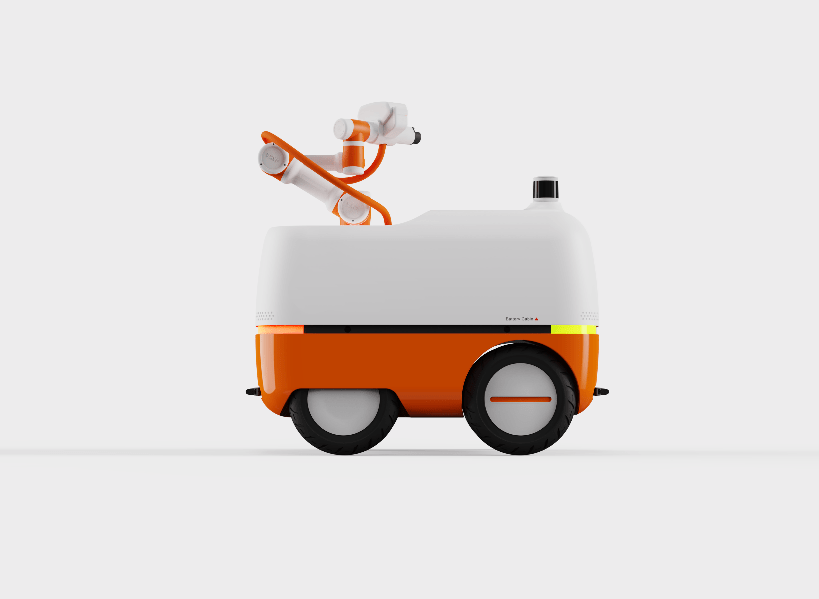

充電機器人
Independently developed charging robot
Launching the first automatic charging robot to layout in the field of unmanned driving and energy replenishment
Our Aim
serve as Sunpower Our strategic partners are committed to providing the highest quality charging products and services for car owners. Choose our different solutions and Sunpower Charging products, you will enjoy high-efficiency charging, intelligent management, strong compatibility, environmental protection and energy saving, as well as high-quality Huawei electric vehicle charging products, making your green travel more convenient and efficient.
